Polyester Slings / Heavy Duty Polyester Webbing Slings
We are Manufacturer, Supplier, Exporter, Stockist, Dealer, Distributor of Polyester Slings, Polyester Webbing Slings, Heavy Duty Polyester Webbing Slings and our setup is situated Pune, Maharashtra, India.
High Strength
Low Stretch
Colour Coded
Hardwearing
Acid Resistant
Low Stretch
Colour Coded
Hardwearing
Acid Resistant

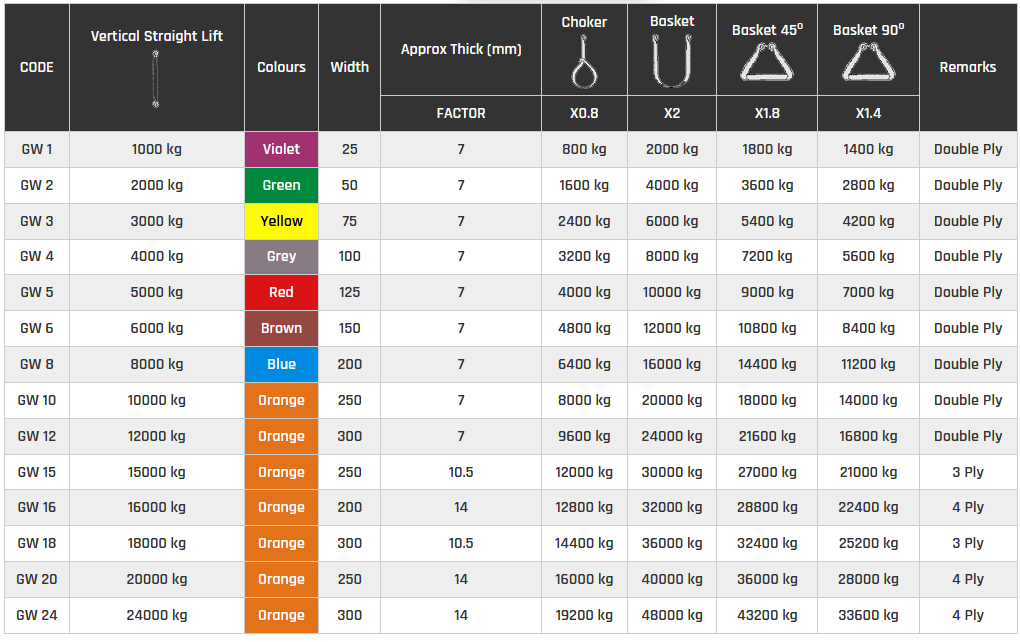

| CODE | Vertical Straight Lift  |
Colours | Width | Approx Thick (mm) | Choker  |
Basket  |
Basket 45o  |
Basket 90o |
Remarks |
|---|---|---|---|---|---|---|---|---|---|
| FACTOR | X0.8 |
X2 |
X1.8 | X1.4 | |||||
| GW 1 | 1000 kg | Violet | 25 | 7 | 800 kg | 2000 kg | 1800 kg | 1400 kg | Double Ply |
| GW 2 | 2000 kg | Green | 50 | 7 | 1600 kg | 4000 kg | 3600 kg | 2800 kg | Double Ply |
| GW 3 | 3000 kg | Yellow | 75 | 7 | 2400 kg | 6000 kg | 5400 kg | 4200 kg | Double Ply |
| GW 4 | 4000 kg | Grey | 100 | 7 | 3200 kg | 8000 kg | 7200 kg | 5600 kg | Double Ply |
| GW 5 | 5000 kg | Red | 125 | 7 | 4000 kg | 10000 kg | 9000 kg | 7000 kg | Double Ply |
| GW 6 | 6000 kg | Brown | 150 | 7 | 4800 kg | 12000 kg | 10800 kg | 8400 kg | Double Ply |
| GW 8 | 8000 kg | Blue | 200 | 7 | 6400 kg | 16000 kg | 14400 kg | 11200 kg | Double Ply |
| GW 10 | 10000 kg | Orange | 250 | 7 | 8000 kg | 20000 kg | 18000 kg | 14000 kg | Double Ply |
| GW 12 | 12000 kg | Orange | 300 | 7 | 9600 kg | 24000 kg | 21600 kg | 16800 kg | Double Ply |
| GW 15 | 15000 kg | Orange | 250 | 10.5 | 12000 kg | 30000 kg | 27000 kg | 21000 kg | 3 Ply |
| GW 16 | 16000 kg | Orange | 200 | 14 | 12800 kg | 32000 kg | 28800 kg | 22400 kg | 4 Ply |
| GW 18 | 18000 kg | Orange | 300 | 10.5 | 14400 kg | 36000 kg | 32400 kg | 25200 kg | 3 Ply |
| GW 20 | 20000 kg | Orange | 250 | 14 | 16000 kg | 40000 kg | 36000 kg | 28000 kg | 4 Ply |
| GW 24 | 24000 kg | Orange | 300 | 14 | 19200 kg | 48000 kg | 43200 kg | 33600 kg | 4 Ply |
